INDUSTRIAL TOUCH SCREEN CONTROLLER

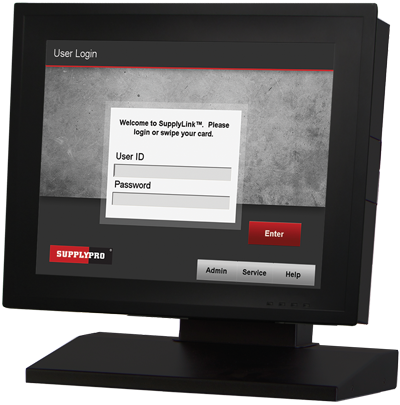

SupplyLink® is a rugged, easy-to-use, industrial grade touch screen controller that operates SupplyPro® devices. Its industrial design enables reliable operation, assured durability and provides superior protection of the display and electronics.

Industrial Grade Design

Built from rugged components to deliver reliability, performance, and versatility. Designed for harsh environments.

Fan-less Operation

High-performance, energy-saving, fan-less operation for reliability and use in dusty, industrial environments.

Dust-Proof, Shock / Vibration Proof

Certified to meet dust, shock and vibration requirements.

Extreme Temperature Operation

Designed to operate at temperatures 0 – 50° C or 32 to 122°

FEATURES AND SPECIFICATIONS

Construction Slim and compact design with Al-Mg housing
Display 15” XGA (1024 x 768) Color TFT LED touchscreen monitor
Keyboard Compact, Full-Featured Keyboard, 10-key numeric keypad, 20 function keys
CPU & Core Logic Intel® quad-core Atom E3845
Touch Sensor Analog Resistive 5-wire
Operating System Windows 10
BIOS Award 256K
Cooling Fan-less cooling system
Certification Meets IP-22 standards for industrial environments
Device Support Prox, mag-stripe, bar-code, hand-held scanner
Languages Multiple
Mounting Standalone or mounts to top of cabinet
Environment Wide temperature 0 – 50° C and input power range of 100-250 Vac 50-60Hz

APPLICATIONS

Can be used with SmartDrawer®, SupplyScale® or SupplyPro VIM to drive one or multiple devices.

WARRANTY

1-year warranty
